Name: RA/RAC Bar Grille - Asli Mechanical Sdn. Bhd.
Brand: Asli Mechanical Sdn. Bhd.

RA/RAC Bar Grille

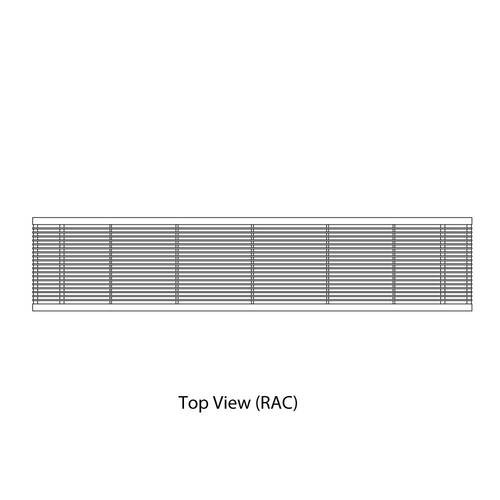

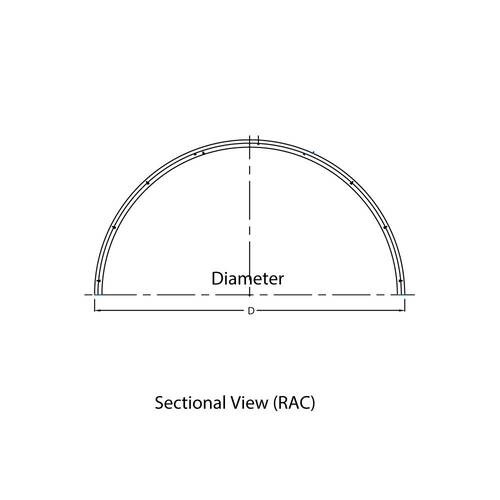

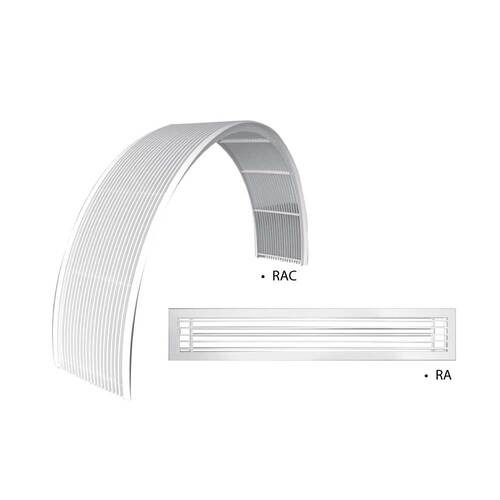

ASLI RA/RAC is a type of grille which has fix blades. The curve type linear bar grilles, RAC, has aesthetic appearance so it is suitable to install at round column or curved wall.

The bar grille air blades are fixed & not adjustable.
Maximum single length is 2700mm.
Above this length, the grille will come in multiple section.

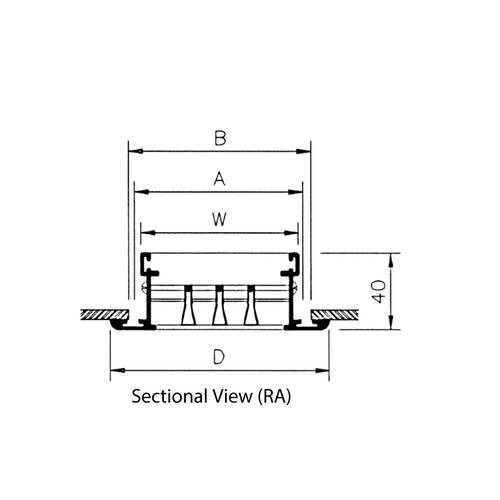

The neck sizes (w) are proportional to the number of linear bar blades.
Please refer to table Bar Grille vs Width.
Two different types of linear bar face deflection angle are available.
The bar grilles that come with plenum boxes are known as RAB
Approximately 65% free area.

Material

Frame : Aluminium Extrusion A6063
Blade : Aluminium Extrusion A6063
(0° deflection or 15° deflection)

Surface Finish

Baked white powder coated as standard.
*Others are available upon reque

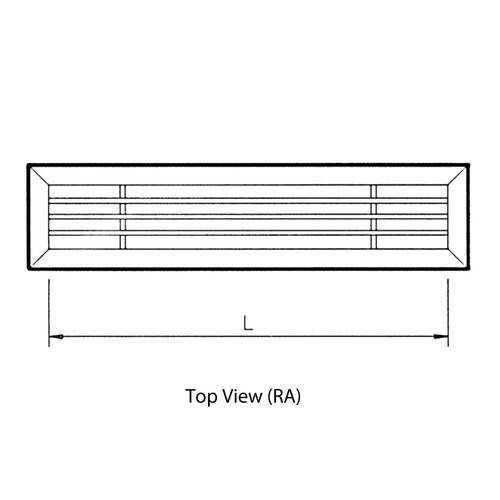

Measurements

(Standard Size Unit: mm)
All size are available upon request.

RA/RAC Bar Grille.pdf
