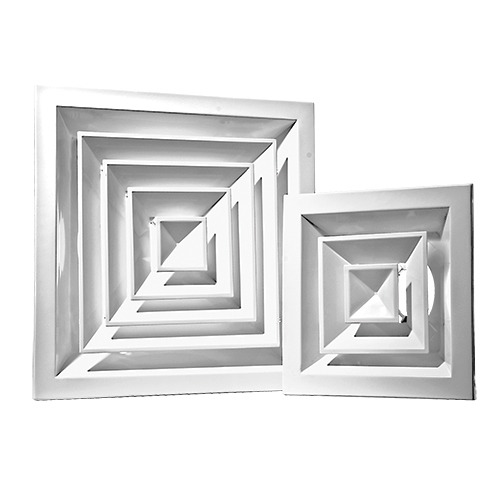

DA Directional Ceiling Diffuser

ASLI DA is a type of diffuser with multiple square cone cones which provide excellent 4 ways directional discharge pattern. This consistent air flow pattern produce rapid mixing, excellent and stable room air distribution. DA is the most popular square ceiling diffuser and suitable for rapid cooling usage.

Can made in square or rectangular shape.
The direction of air flow can set at 1, 2, 3 or 4 ways.
The removable core is hooked on the inner frame with spring-loaded clip which allow easy adjustment of volume
control damper.

Material

DA-A
Frame : Aluminum extrusion
Blade : 1.0mm aluminum
Support Bar : 1.5mm galvanized steel

DA-T
Frame : 0.7mm galvanized steel
Blade : 0.6mm galvanized steel
Support Bar : 1.5mm galvanized steel

Surface Finish

White powder coated, oven baked as standard.
Others available upon request.

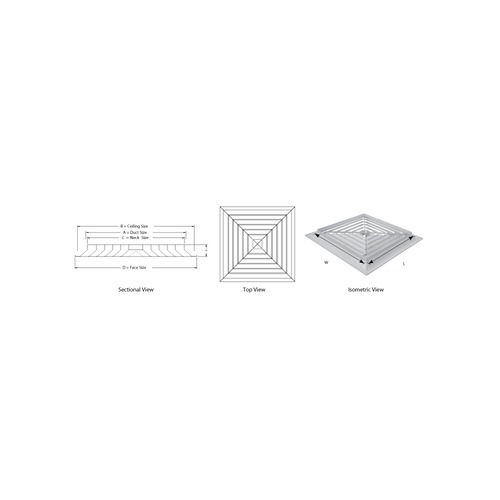

Measurements

(Standard Size Unit: mm)
290 x 290 / 370 x 370
450 x 450 / 595 x 595
603 x 603
Others available upon request.
