DQ Directional Ceiling Diffuser

ASLI DQ is a type of diffuser with adjustable air control blades. This unique design focuses on the appearance of the diffuser, as well as the performance of the diffuser. It can perform 2-way, 3-way or 4-way air flow projecting horizontally from the face of diffuser to avoid direct throw to occupant’s zone.

The direction of air flow can set at 2, 3 or 4 ways.
Balance between aesthetic appearance and performance.
Horizontal throw reduces direct-throw of air on occupants.
Standard size available for T-bar ceiling on metric or imperial size.

Material

Diffuser : 1.0mm Galvanized steel
Guide Vane Holder : ABS Plastic
Guide Vane : Aluminium Extrusion

Surface Finish

White powder coated, oven baked as standard.
Others available upon request.

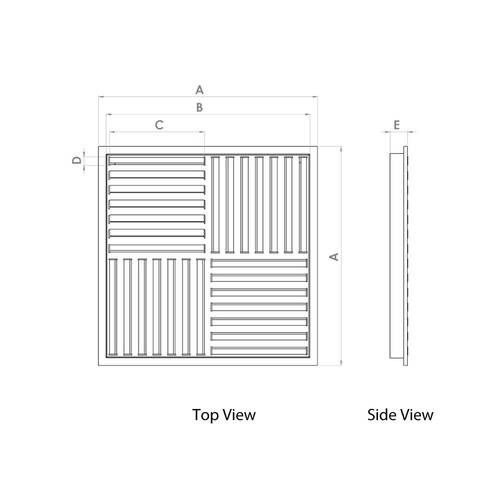

Measurements

(Standard Size Unit: mm)
595 x 595 / 603 x 603
