DB Directional Ceiling Diffuser

ASLI DB is a type of diffuser with multiple square cones which provide excellent 4 ways directional discharge pattern. Each cone is one piece dieformed construction with seamless surface andno corner joints. This consistent air flow pattern produce rapid mixing, excellent and stable room airdistribution. DB is the most popular square ceiling diffuser and suitable for rapid cooling usage.

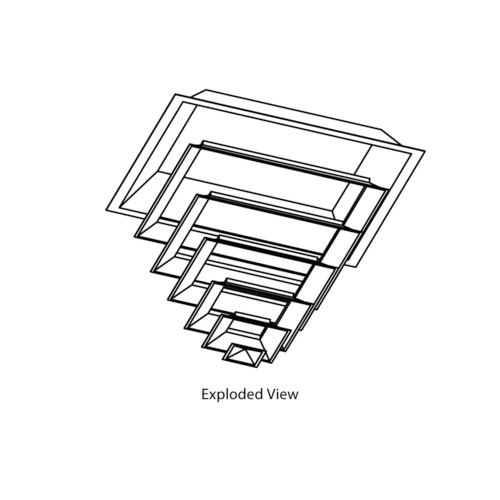

Frame for DB is flush & pressed out.
The removable core is hooked on the inner frame with spring-loaded clip which
allow easy adjustment of volume control damper.

Material

DB-A
Frame : 1.0mm aluminum
Blade : 1.0mm aluminum
Support Bar : 1.5mm galvanized steel

DB-T
Frame : 0.7mm galvanized steel
Blade : 0.6mm galvanized steel
Support Bar : 1.5mm galvanized steel

Surface Finish

White powder coated, oven baked as standard.
Others available upon request.

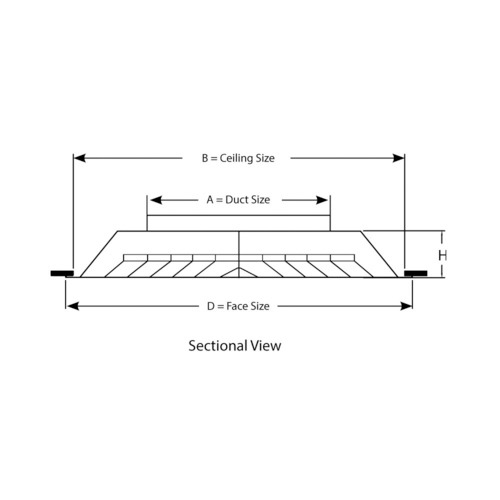

Measurements

(Standard Size Unit: mm)
290 x 290 / 370 x 370
450 x 450 / 595 x 595
603 x 603
