GA Linear Bar Grille

ASLI GA is a type of grille made up of 2 sets of air foil blades with the horizontal blade in front and vertical set air foil blade behind.

  • The horizontal blades are fixed meanwhile the vertical air foil blade is adjustable.
  • The grille will come in more sections for blade length that is more than 500mm.
  • Approximately 60% free area when blades are fully open
Material

Frame : Aluminium Extrusion A6063
Blade: Aluminium Extrusion A6063

Surface Finish

Baked white powder coated as standard.
Others available upon request.

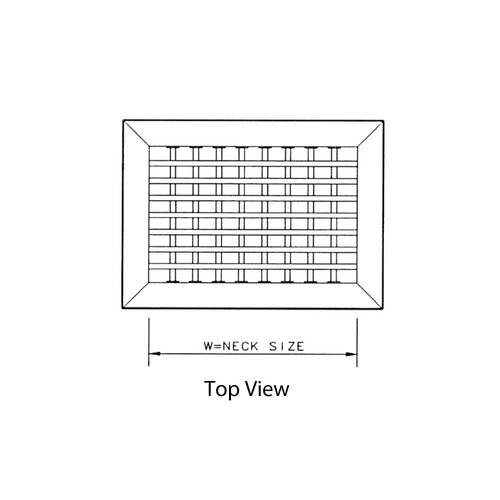

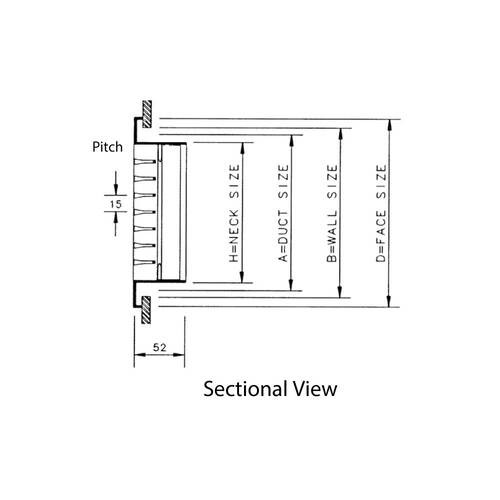

Measurements

(Standard Size Unit: mm)
Available upon request.
Others available upon request.
