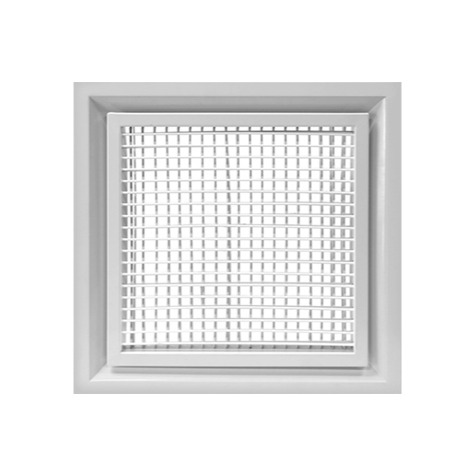

DG Double Deflection Ceiling Diffuser

ASLI DG series is a type of diffuser designed for high ceilling installation.

  • Diffuser core in the center is made of double deflection blade, which enables more air distribution in perpendicular direction.
  • Suitable for high ceiling installation.
Material

DG-T 0.6mm SPGC galvanized steel.
DG-A Aluminium extrusion.

Surface Finish

White powder coated, oven baked as standard.
Others available upon request.

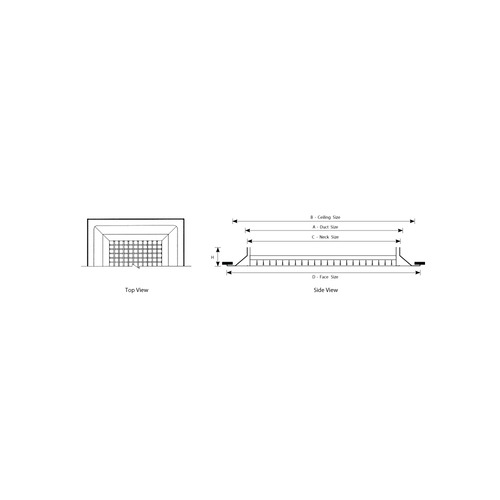

Measurements

(Standard Size Unit: mm)
290 x 290 / 370 x 370
450 x 450 / 595 x 595
600 x 600 / 603 x 603
Others available upon request.
