RY Transfer Grille
RY Transfer Grille - Image 1
RY Transfer Grille - Image 2
RY Transfer Grille - Image 3

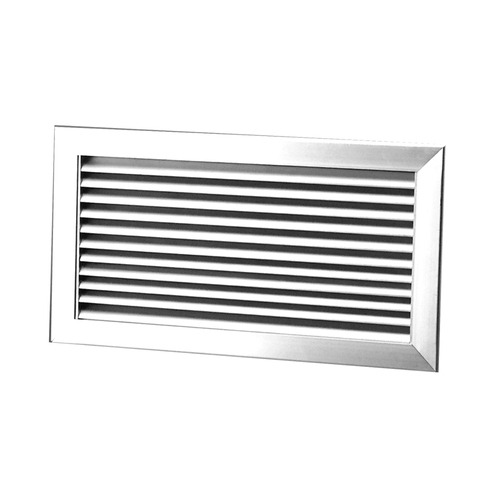

RY Transfer Grille

ASLI RY is a type of grille with inverted-V blade design which light is not permitted to penetrate through the grille.

  • Sight-proof core design.
  • Widely used in doors and partitions to allow air flow into or out of space.
  • They are also used in theatres or dark room where light is not permitted to penetrate through the grille.
  • The grille will come in more sections for blade length that is more than 600mm.
  • Approximately 59% free area.
Material

RY-A
Frame : Extruded aluminium A6063
Blade : Extruded aluminium A6063

Surface Finish

Baked white powder coated as standard.
Other available upon request.

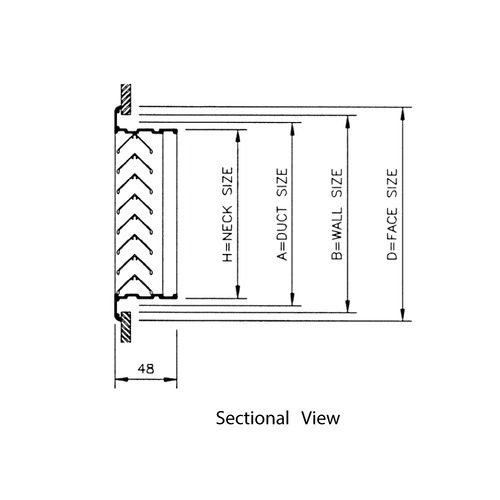

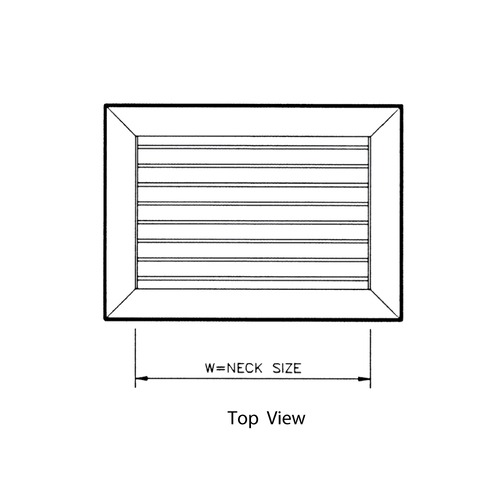

Measurements

 (Standard Size Unit: mm)
All sizes are available upon request.

Same Category

View All
RM Louver Type Return Air Grille
RM Louver Type Return Air Grille

Return Air Grilles
RC Curve Blade Return Air Grille
RC Curve Blade Return Air Grille

Return Air Grilles
RG Eggcrate Type Return Air Grille
RG Eggcrate Type Return Air Grille

Return Air Grilles

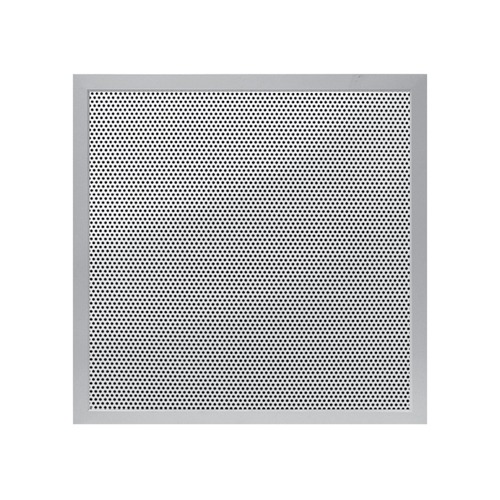

RF Perforated Face Return Air Diffuser
