RC Curve Blade Return Air Grille

RC Curve Blade Return Air Grille

ASLI RC series is a return air grille with curved blade design of approximately one eight of the circumference of a circle.

The shape of the curved blade is approximately one eighth of the circumference of a circle.
Suitable to install on wall for return air application.
The grille will come in more sections for blade length that is more than 600mm.
Approximately 48% free area.

Material

RC-A
Frame : Extruded aluminium A6063
Blade : Extruded aluminium A6063

RC-T
Frame : 0.7mm Galvanized steel
Blade : 0.5mm Galvanized steel

Surface Finish

Baked white powder coated as standard.
Other available upon request.

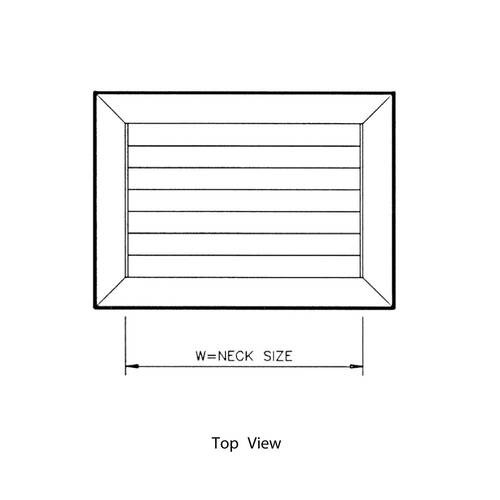

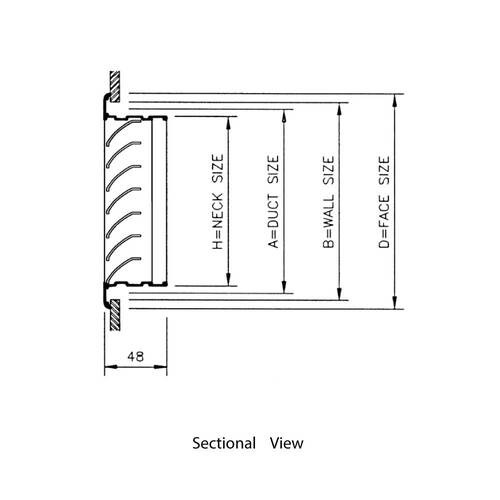

Measurements

(Standard Size Unit: mm)
All sizes are available upon request.

RC Curve Blade Return Air Grille.pdf
