NACM 20Nm Modulating Control Actuator

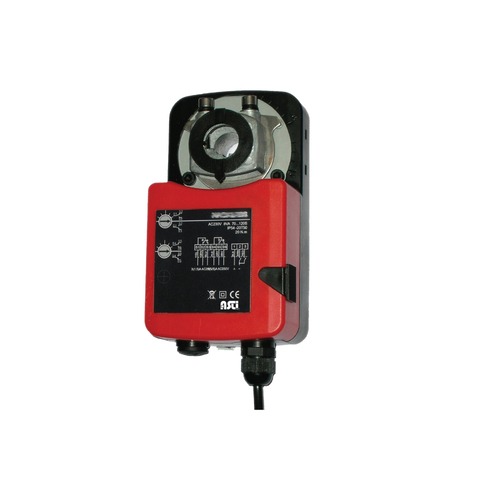

NACM 20Nm Modulating Control Actuator - Image 1

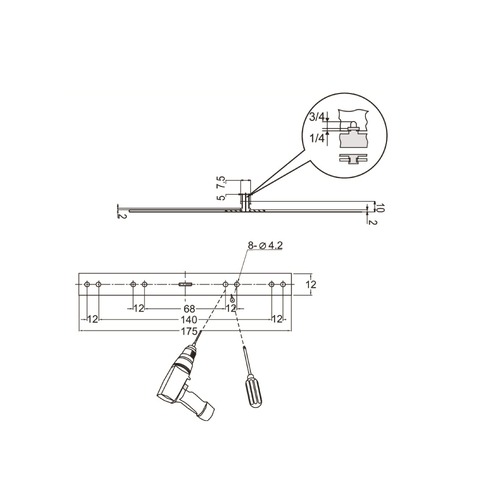

NACM 20Nm Modulating Control Actuator - Image 2

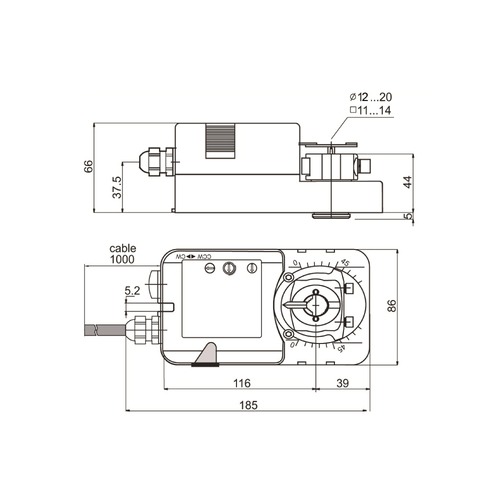

NACM 20Nm Modulating Control Actuator - Image 3

NACM 20Nm Modulating Control Actuator

ASLI damper actuators are are especially designed and produced for applications in the HVAC systems with latest Switzerland technology. It has been developed for use with air damper, butterfly valve, characterized ball valve and globe valve with the use of special adapter.

  • Torque 20 Nm
  • Damper neck size 4.0 m²
  • Power supply AC/DC 24V and AC 230V
  • Universal Adapter Ø12 to 20 mm round / 11 to 14 mm square
  • Manual over-ride push button when required.
  • Selectable direction of rotation CW/CCW
  • 2 adjustable SDPT auxiliary switch when requested
  • Actuator with 1m cable connection
Material

Torque: 20 Nm | Running Time: 70…120 sec

Power Supply: AC/DC 24V

  • No auxiliary switch → Model: NACM 1.1-20
  • With 2 × SPDT switches → Model: NACM 1.1-20S

Power Supply: AC 230V

  • No auxiliary switch → Model: NACM 2.2-20
  • With 2 × SPDT switches → Model: NACM 2.2-20S
