NACM 10Nm Modulating Control Actuator
NACM 10Nm Modulating Control Actuator - Image 1

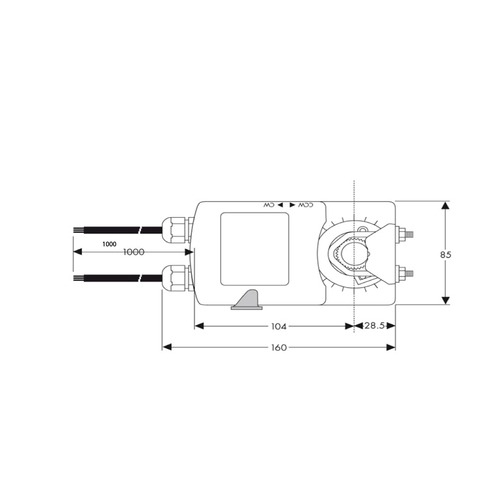

NACM 10Nm Modulating Control Actuator - Image 2

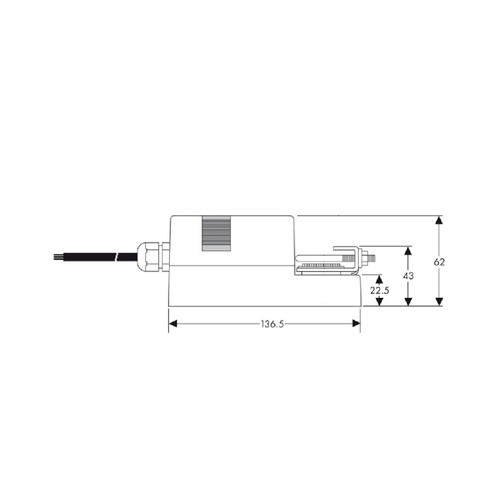

NACM 10Nm Modulating Control Actuator - Image 3

NACM 10Nm Modulating Control Actuator

ASLI damper actuators are are especially designed and produced for applications in the HVAC systems with latest Switzerland technology. It has been developed to operate and position air dampers of different sizes. Angular positioning of modulating actuators can be controlled by the NPG-1 positioner.

  • Torque 10 Nm
  • Damper neck size 1.5 m²
  • Power supply AC/DC 24 V
  • Control modulating DC 0(2)…10 V and 0 (4)…20 mA
  • 1 adjustable auxiliary switch (SPDT) when requested
  • Shaft dimensions: Ø 10 to 20 mm round / 5 to 14 mm square
  • Minimum shaft length 45 mm
  • Selectable direction of rotation
  • Adjustable angle of rotation
  • Actuator with 1m cable connection
Material

Torque: 10 Nm | Running Time: 100…150 sec
Power Supply: AC/DC 24V ±10%
• No auxiliary switch → Model: NACM 1.1-10
• With 1 × SPDT switch → Model: NACM 1.1-10S1
