FLD-FP Fan Powered Floor Diffuser

ASLI FLD-FP round fan powered floor diffusers are specially designed for use in raised floor air distribution systems, where the floor cavity is used as a pressurized supply air plenum. Maximum comfort level could be achieved by producing high induction rates of room air with the design of FLD-FP. Aesthetically appealing FLD-FP is assessable by removing the diffuser core to remove the dust in the dust tray. (FLD-FP comes with 3-speed control centrifugal fan by remote controller with infrared features). (Temperature set point can be set at the remote controller) and the centrifugal fan will run according to the temperature set point with 3 speeds.

Master/slave technology.
Plug and play feature for ease of connection.
Maximum connection up to 6 slave units.
Swirl air pattern provides high induction rates of room air.
Suitable for high ceiling air conditioning system.
Dust tray catches anything that might fall through the diffuser face and is removable for cleaning.
Aluminum die casting diffuser core provides high strength to withstand heavy load.
Remote control via infrared. (Optional)
3 fan speeds. (3 air flow rates – low / medium / high)
Fan speed controlled by the difference between temperature set point and sensed temperature.
Fan speed can be override at the remote controller.
Static pressure regains as fan is running.
Internal insulation to attenuate noises and prevents condensation.
The FLD-FP housing can be removed by simply rotating the housing and disengaging it at the collar.
Hangers are provided for easy installation.
Vibration free performance.
Wire mesh at the air inlet under FLD-FP prevents unwanted object from passing through.

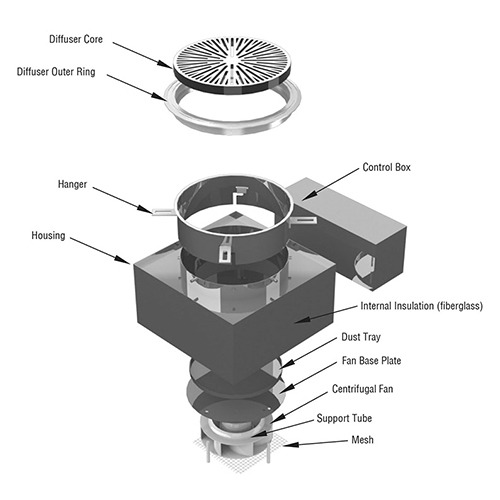

Material

Diffuser core : Aluminum die casting
Outer ring : Aluminum die casting
Housing : 0.7mm thickness galvanized steel
Insulation : Fiber glass, 25mm, 32kg/m³

Surface Finish

Mill finished.
Standard Models.

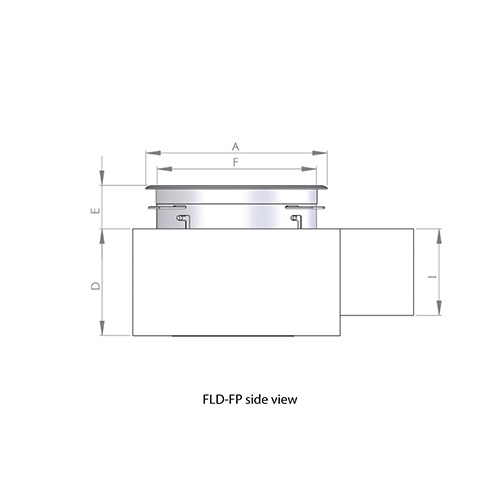

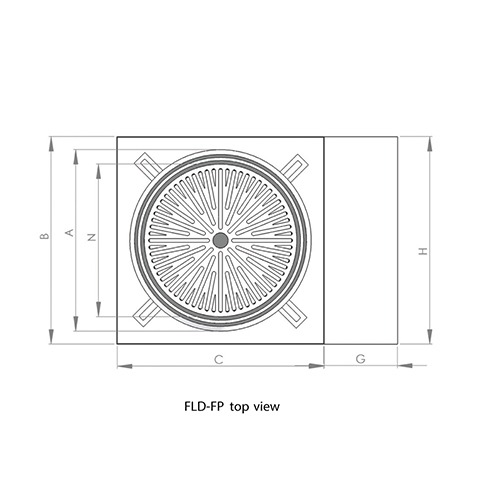

Measurements

(Standard Size Unit: mm)
ø250

FLD-FP Fan Powered Floor Diffuser.pdf
