SJS-T Galvanised Steel Jet Slot Ceiling Diffuser
SJS-T Galvanised Steel Jet Slot Ceiling Diffuser - Image 1
SJS-T Galvanised Steel Jet Slot Ceiling Diffuser - Image 2

SJS-T Galvanised Steel Jet Slot Ceiling Diffuser

ASLI SJS-T is a type of diffuser provides more airflow and ease of installation compared to conventional linear diffuser.

  • SLLS linear diffuser can be used in T-bar ceiling suspension system & other ceiling types as well.
  • The diffuser incorporates curved blade pattern controller for adjustable of air distribution.
  • Model SLLS-1 has a 90˚ mitred corner connection
  • Linear diffusers that come with plenum boxes are known as SLLSB.
  • Approximately 38% free area when blades are fully open.
  • Available in 1 slot to 6 slots.
Material

Frame : 1.2mm galvanized steel
Pattern controller vane : 0.7mm galvanized steel

Surface Finish

Baked white powder coat as standard
Pattern controller vane is black colourbond.

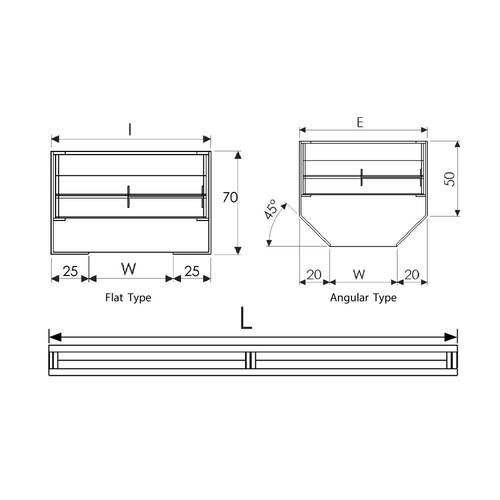

Measurements

(Standard Size Unit: mm)
600 (2’) / 1200 (4’)
Others avaiable upon request
