KD-TC Non Return Damper

ASLI Non Return Damper (KD-TC) is designed for automatic shut off of individual section of air conditioning system. Contemporary styling features blades that overlap the frame for optimum leakage proof. The counterbalance arm provides the flexibility to increase or reduce the pressure drop across the damper; hence KD-TC can serve as a pressure relief damper as well. The damper’s aesthetical appearance is maintained by sturdy, corrosion resistant aluminum and galvanized steel construction. Two models available, KD-TC1 and KD-TC2 for heavy duty usage.

Designed to allow airflow in one direction and prevent reverse flow.
Spring-loaded or gravity-operated blades close automatically when airflow stops.
Low pressure drop design ensures efficient system performance.
Provides protection against backdraft, dust, and unwanted air entry.
Can be installed horizontally or vertically in duct systems.
Compact and lightweight construction for easy installation.

Material

KD-TC1
Frame: Galvanized steel, 1.2mm thickness.
Blade: Galvanized sheet, 0.7mm thickness.

KD-TC2
Frame: Galvanized steel, 1.5mm thickness.
Blade: Galvanized sheet, 1.2mm thickness.

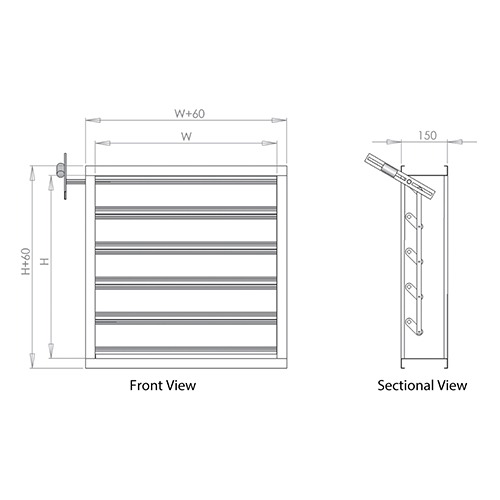

Blade Dimension Limits
Maximum blade lengh = 1000mm
Maximum blade width = 170mm

Blade Action
Parallel blade

Temperature Limits
-40°C to +93°C

Connection Type
Slip joint or TDC Joint.

Bearing
Plastic sleeve as standard.
Bronze bush is optional

Surface Finish

Frame: Mill galvanized.
Blade: Mill galvanized.

KD-TC Non Return Damper.pdf
