FDC-T Curtain Type Fire Damper
FDC-T Curtain Type Fire Damper - Image 1
FDC-T Curtain Type Fire Damper - Image 2
FDC-T Curtain Type Fire Damper - Image 3
FDC-T Curtain Type Fire Damper - Image 4
FDC-T Curtain Type Fire Damper - Image 5

FDC-T Curtain Type Fire Damper

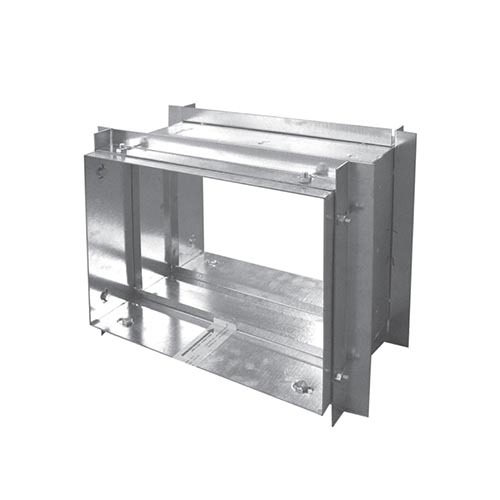

ASLI FDC-T is a curtain type fire damper, which shut off the fire damper when the fusible link fuses off at 74°C(165°F). No tensioned spring is required. The blades will fall down by its weight when fusible link is open.

  • Designed to close automatically during fire conditions to prevent spread of flames and smoke.
  • Curtain-type blade assembly provides reliable and compact fire protection.
  • Fitted with fusible link (typically 72°C) for automatic operation.
  • Suitable for both vertical and horizontal duct installations.
  • Low pressure drop during normal airflow operation.
  • Fire-rated for 60 minutes (other ratings available on request).
Material

Frame : 1.5mm galvanized steel.
Blade : 0.8mm curtain typed.

Connection Type
Angle bar (A) as standard.

Measurements

(Standard Sizes unit:mm)
200 × 200 / 300 × 300 / 400 × 400 / 500 × 500 / 600 × 600 / 750 × 750 / 900 × 900 / 1000 × 1000
Larger and custom sizes available upon request.
